10mm Through Hole Stock Foamed Aluminium Sheet

Features foam aluminum plate: foam aluminum bare plate retains the essence of is aluminum, silver gray metal appearance, Class A1 fire protection, corrosion resistance, aging resistance, smooth surface without hurting hands, natural and beautiful, uniform color, and suitable for large area building pavement engineering. The product has passed the test of the national testing agency, and meets the requirements of JG/T359-2012 foam Aluminum Plate for Building, which is safe, reliable and quality guaranteed.


  Contact Now E-Mail Telephone WhatsApp
Product Details

Product description:

Aluminum foam is a new type of light metal material made by foaming aluminum alloy using the principle of bionic structure. It is light and strong, with a density lower than that of water. It has sound insulation and noise reduction, electromagnetic shielding, energy absorption buffer, flame retardant and explosion-proof and many other excellent properties, and is widely used in transportation facilities, building decoration, military and aerospace, civil panels and equipment manufacturing and other fields.

10 mm Through Hole Foam Aluminum Sheet is an aluminum sheet that is 10 mm thick and contains through holes. Through-holes are openings that pass completely through the material, allowing air, light or other substances to pass through. In the case of aluminum foam panels, through-holes may be a feature of the foam structure that provides properties such as lightweight, sound absorption or thermal insulation. Such aluminum panels with through-holes can be used in a variety of applications with these properties, such as in the aerospace industry, construction, automotive or acoustic panels.

Product parameters:

Stock size:60cm*120cm can customized any size

Thickness :5mm 10mm others can customized

Open cell aluminum foam has excellent sound absorption and fire resistance. The product has passed national inspection and certification. It is green, non-toxic and harmless. It is a perfect porous metal decorative material for buildings and is currently the only alternative to fiber sound-absorbing materials in road acoustic management. porous metal materials.


10mm Through Hole Stock Foamed Aluminium Sheet

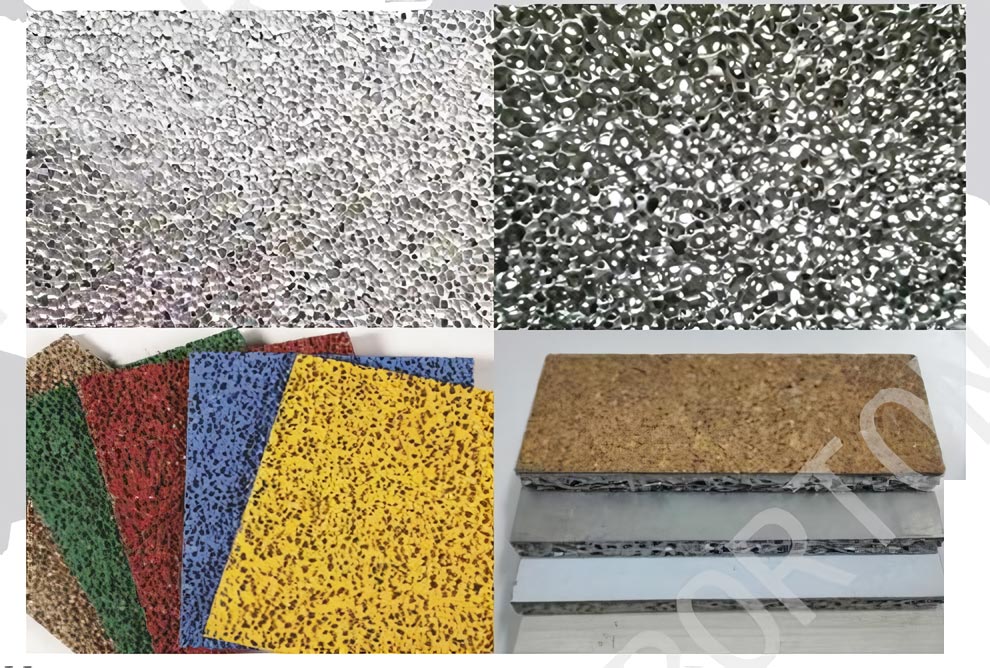

Product Classification:

1.Closed cell aluminum foam sheet

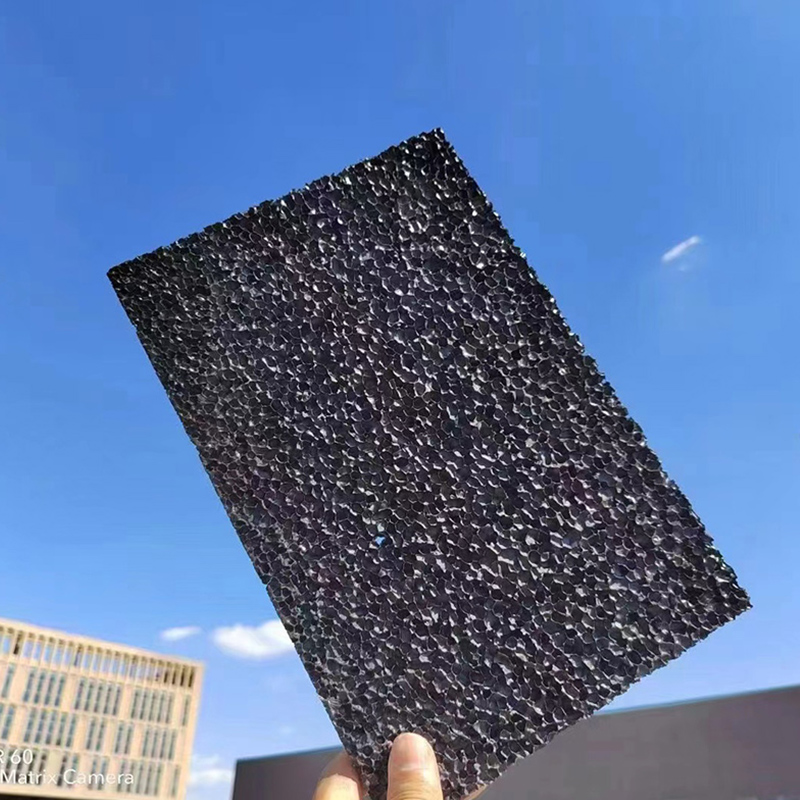

2.Through-hole aluminum foam

aluminum foam sheet plate (transparent plate)

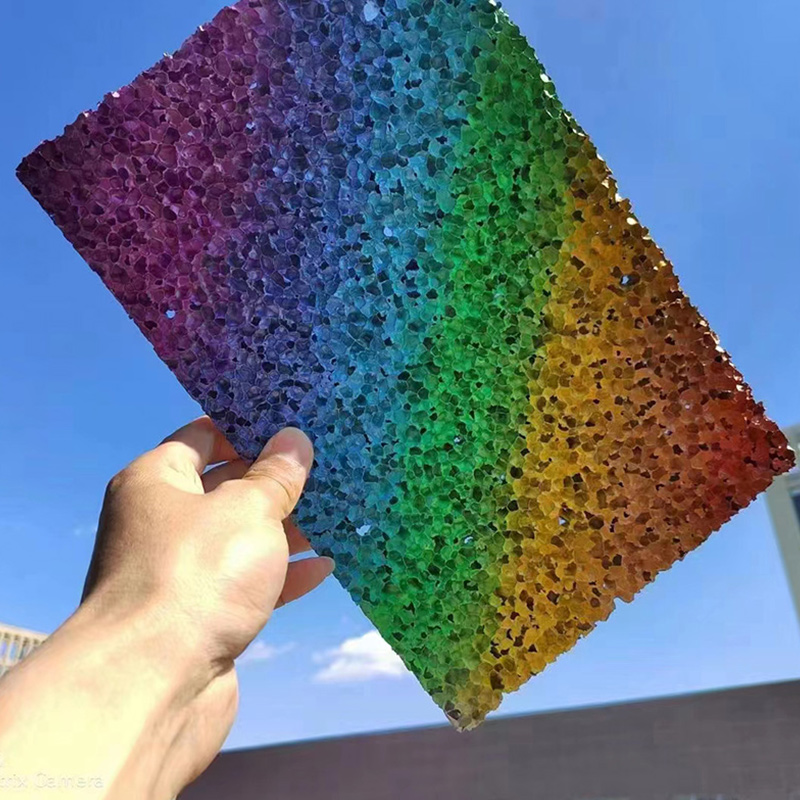

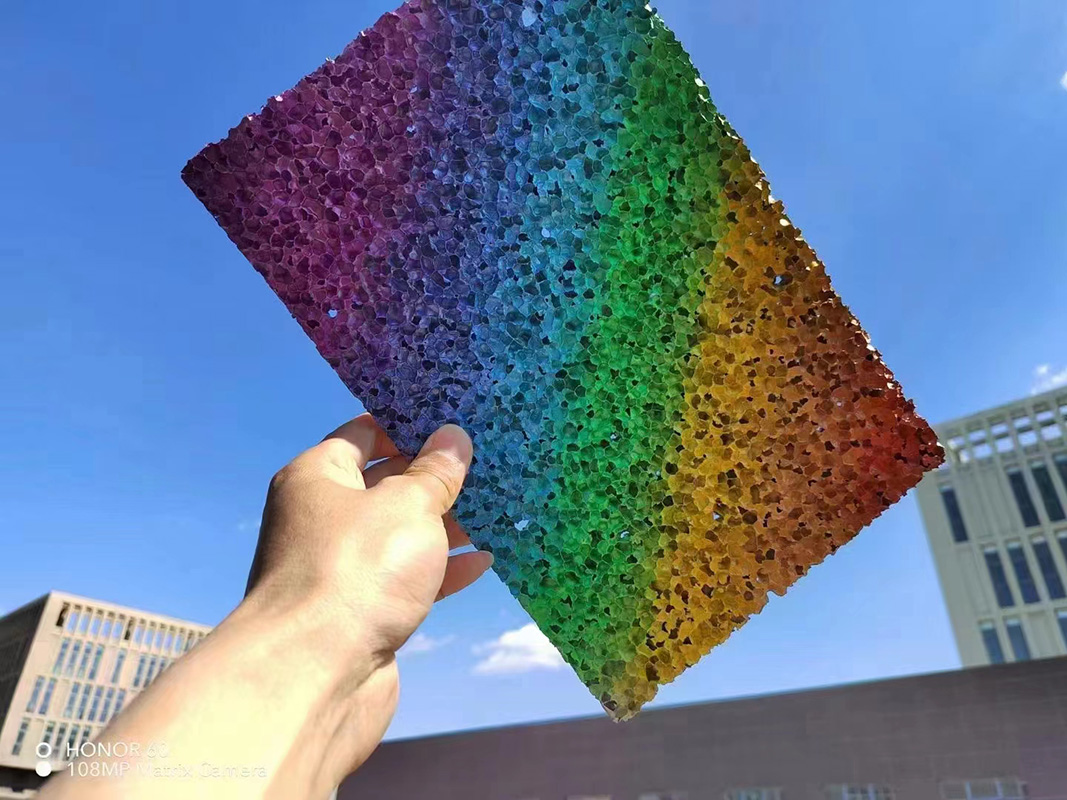

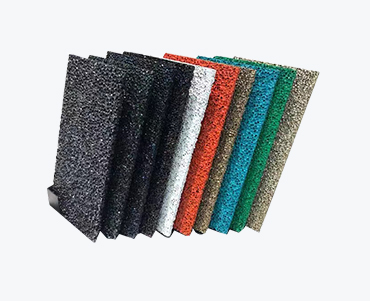

3.Aluminum foam color plate

4.Aluminum foam composite board


10mm Through Hole Stock Foamed Aluminium Sheet

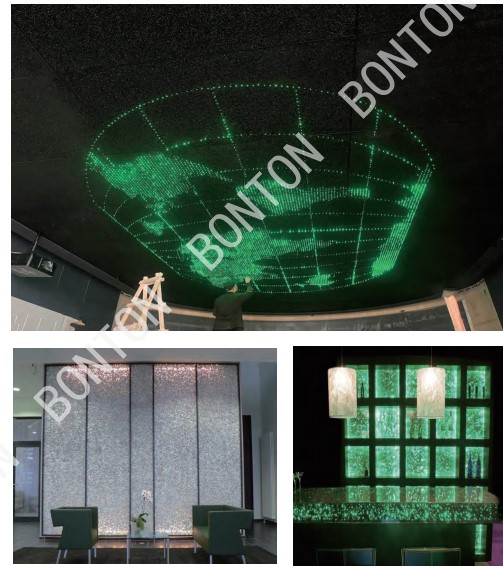

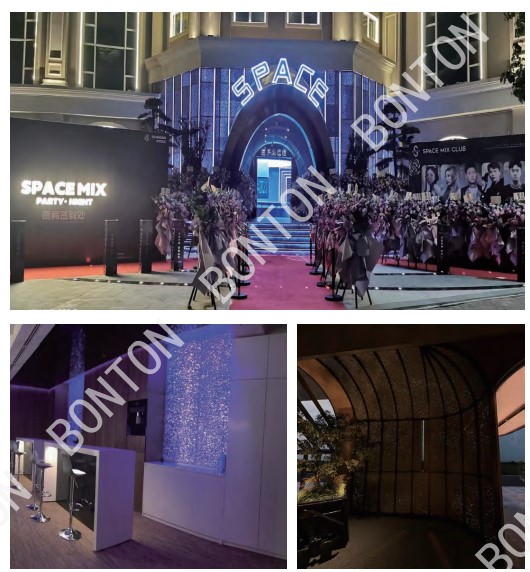

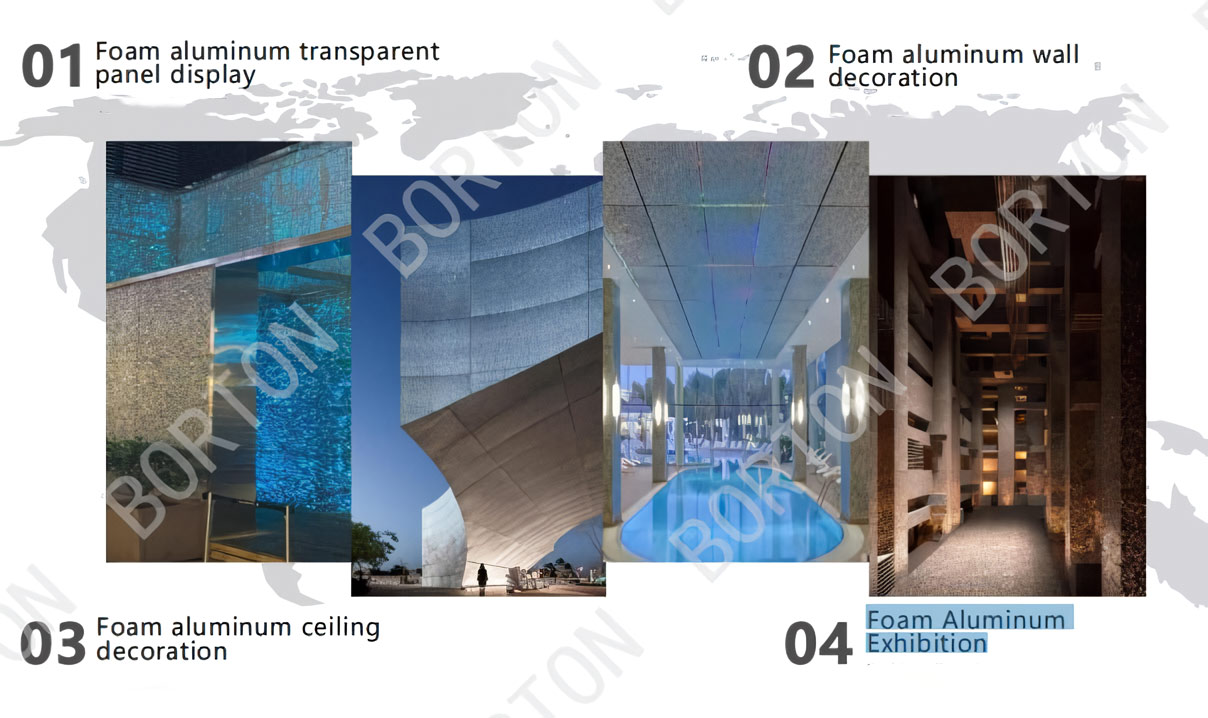

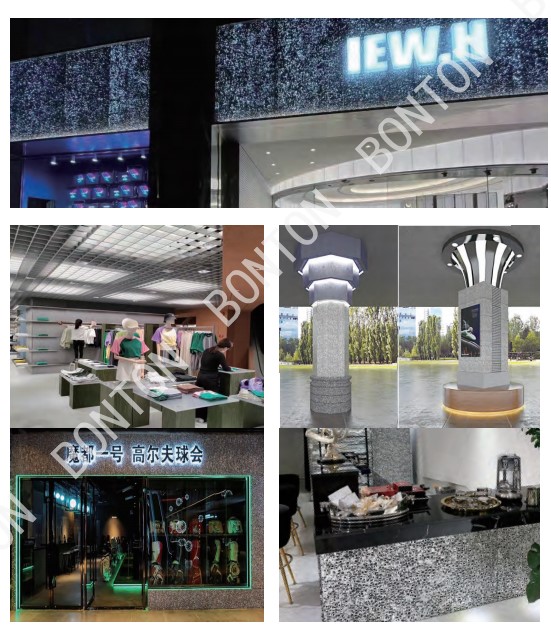

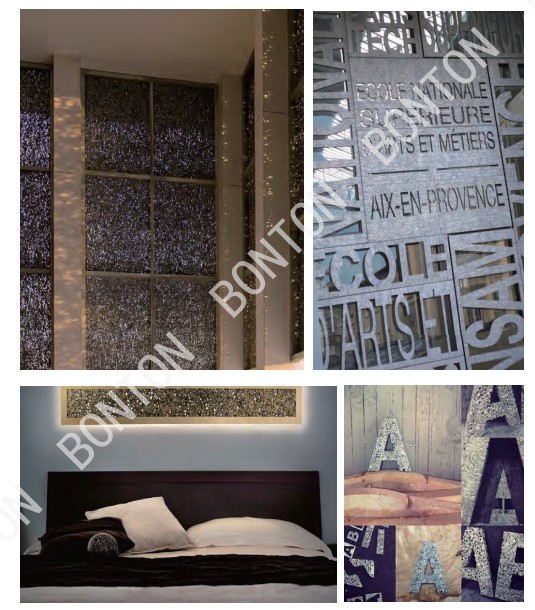

Decorative effect display:

1.Foam aluminum transparent panel display

2.Foam aluminum wall decoration

3.Foam aluminum ceiling decoration

4.Foam Aluminum Exhibition


10mm Through Hole Stock Foamed Aluminium Sheet


10mm Through Hole Stock Foamed Aluminium Sheet


10mm Through Hole Stock Foamed Aluminium Sheet


10mm Through Hole Stock Foamed Aluminium Sheet


10mm Through Hole Stock Foamed Aluminium Sheet


Installation guidance plan:

Scheme 1: Wall installation, fixed by card slot and adhesive

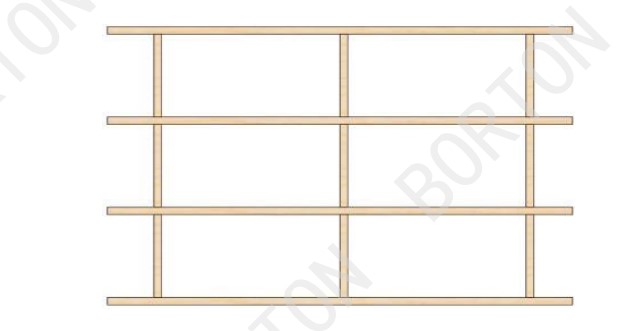

1. Level the wall, make sure it is flat, lay a wood base layer on top of the wall and secure it to the wall with a nail gun.

2. Set up electrical wiring, plan the installation location, and determine the size of the foam aluminum panels;


10mm Through Hole Stock Foamed Aluminium Sheet

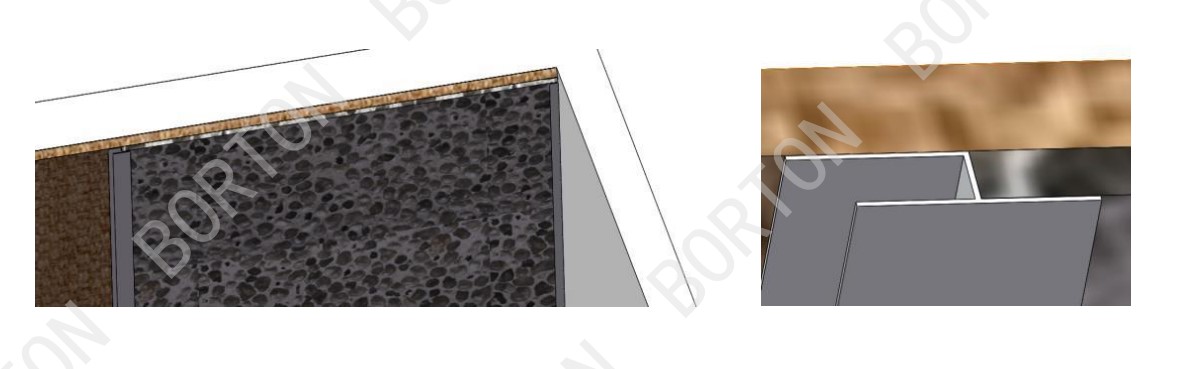

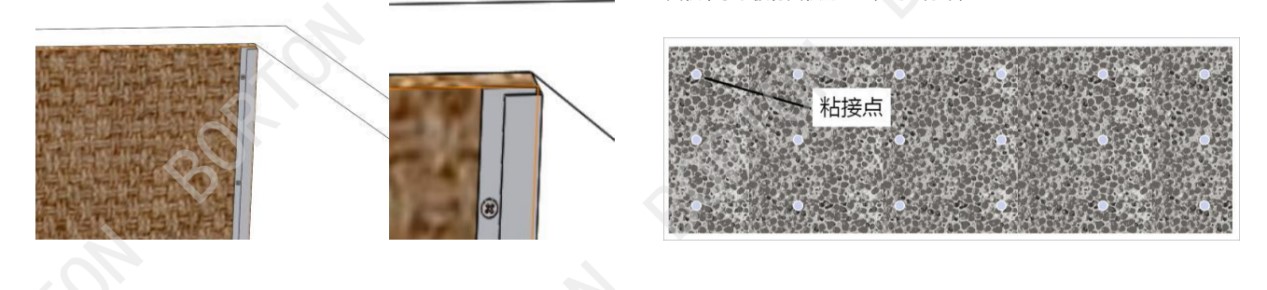

3. Install the terminal interface card slot and secure it to the wooden base with screws

4. Apply adhesive to the back of the aluminum foam sheet. The adhesive may be in the form of spot bonding or surface bonding, and the adhesive area is not less than 2% of the area of the plate and is evenly distributed. The bonding area is not less than 2% of the plate area and is evenly distributed;


10mm Through Hole Stock Foamed Aluminium Sheet

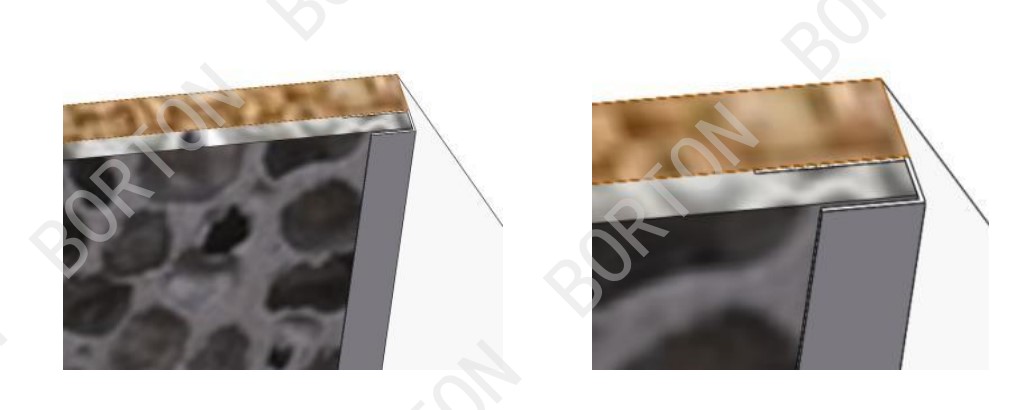

5. Install the aluminum foam sheet in the predetermined position, and the edge is matched with the receiving slot;


10mm Through Hole Stock Foamed Aluminium Sheet


6. Install the middle card slot, match with the other end of the aluminum foam sheet, and then fix it on the wood base with screws;


10mm Through Hole Stock Foamed Aluminium Sheet

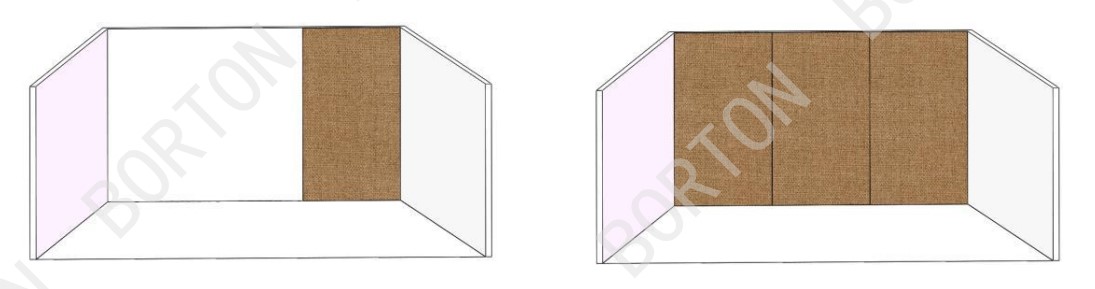

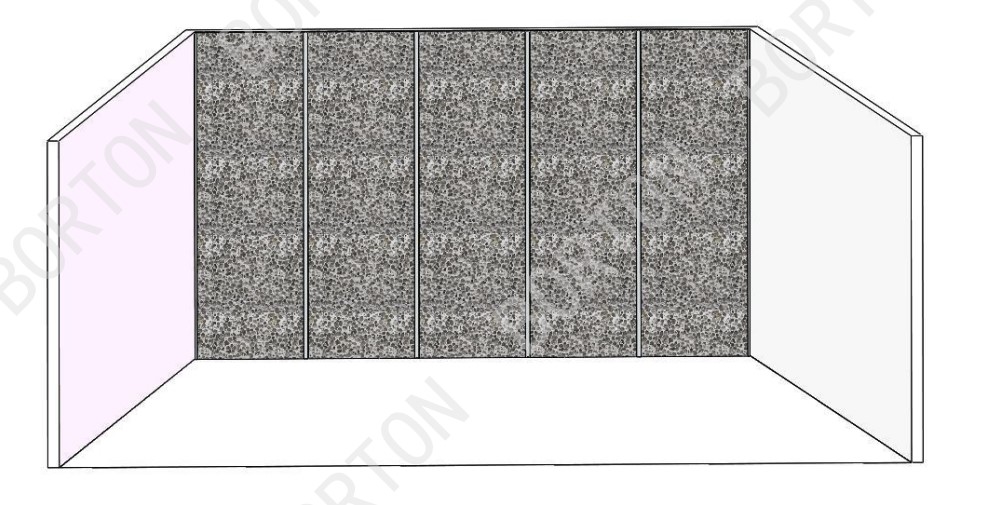

7. In accordance with the above method, fix the remaining plates on the wall in turn


10mm Through Hole Stock Foamed Aluminium Sheet


Solution 2: Directly installed on the wall

1. When the wall is suitable for bonding, the aluminum foam sheet can be directly glued to the wall;

2. When the wall is not applicable and bonded, the aluminum foam sheet can be fixed on the wall with gun nails. The adjacent plates can be directly buttressed or gaps reserved for later use of T-shaped laminates to cover and fill.

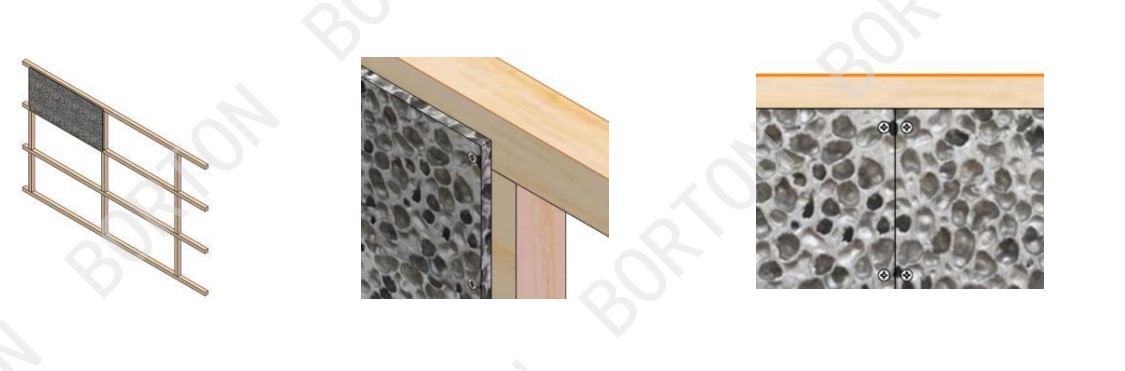

Scheme 3: Keel support installation  of the aluminum foam sheet

1. Install the keel according to the size and installation direction of the aluminum foam sheet;

2. Lap between aluminum foam sheet and keel, and then use self-tapping nails or nail gun to connect and fix;

3. When the keel is narrow, it can also be fixed by layering.


10mm Through Hole Stock Foamed Aluminium Sheet

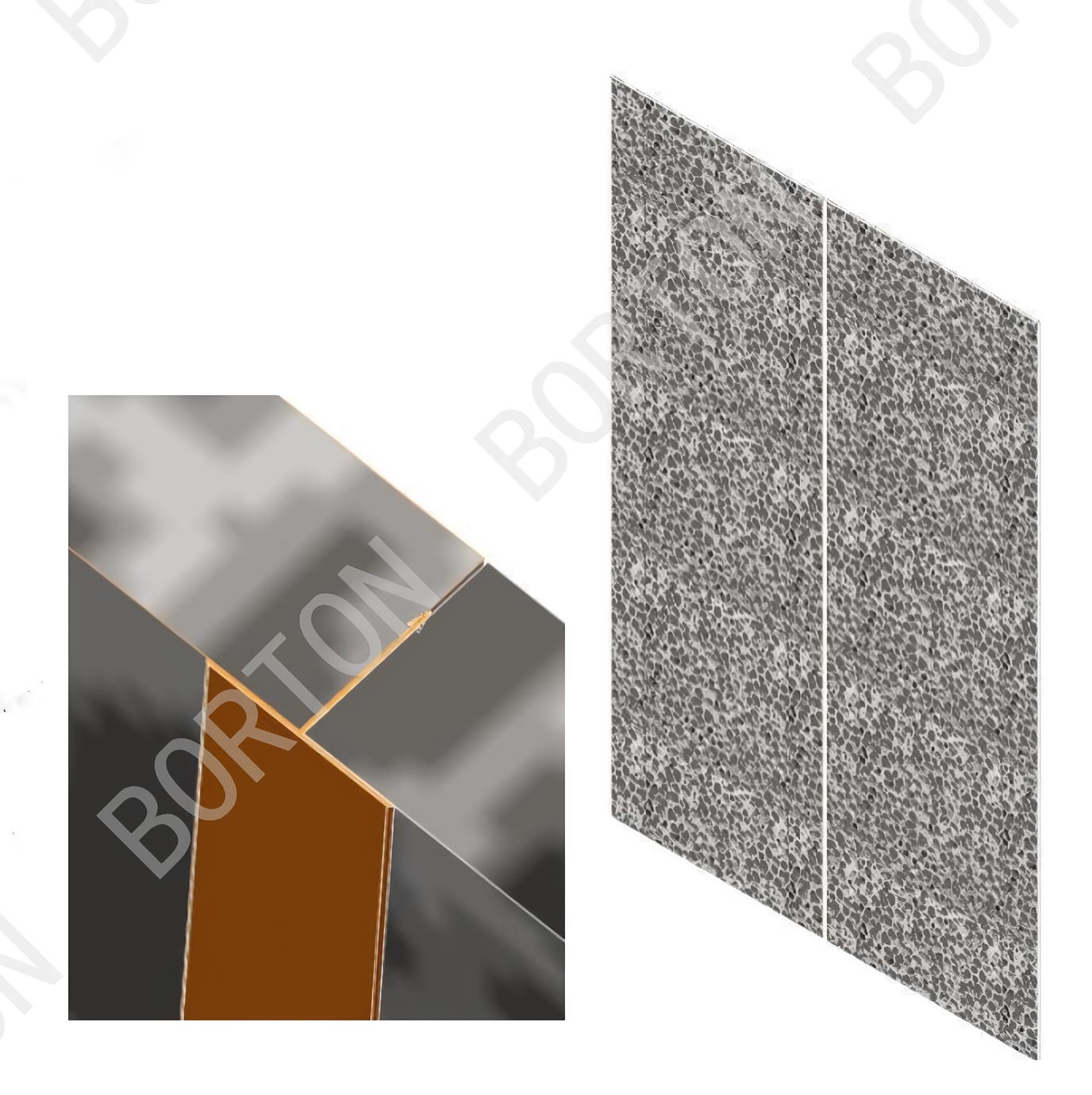

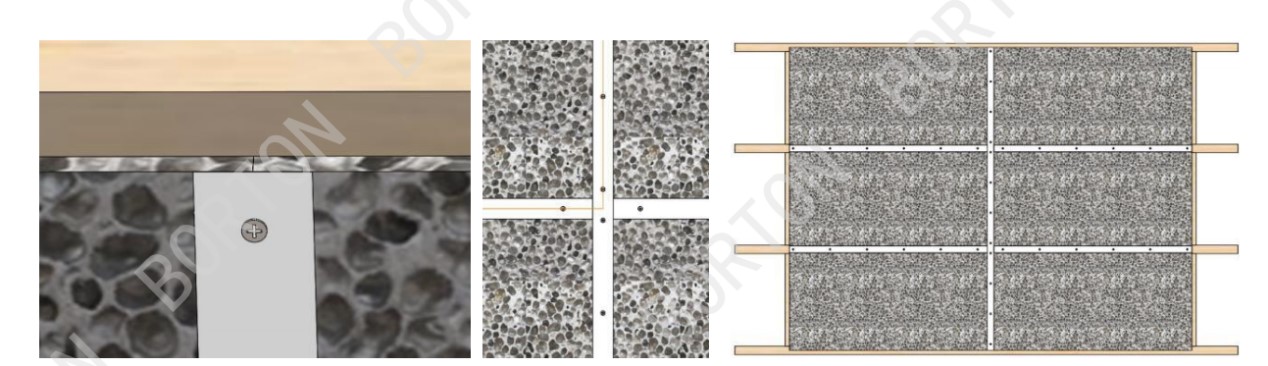

Scheme 4: The use of several types of slot fixed connection

1. The method is suitable for wall and ceiling keel installation.


10mm Through Hole Stock Foamed Aluminium Sheet

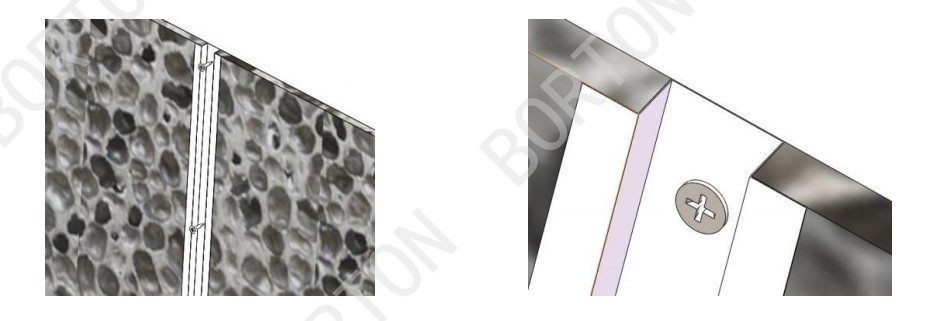

2. Several strip sare placed in the installation gaps of adjacent aluminum foam sheets as


10mm Through Hole Stock Foamed Aluminium Sheet

3. Support pieces between sheets,and then fixed to the wall or keel by screws.


10mm Through Hole Stock Foamed Aluminium Sheet

4. Connected grooves can be modified by decorative strips or lamp strips.


10mm Through Hole Stock Foamed Aluminium Sheet

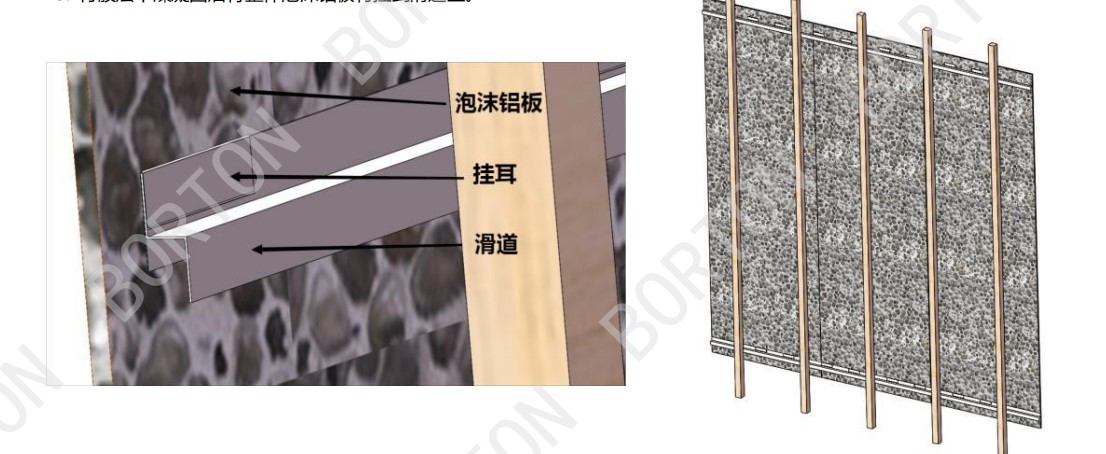

Solution 5: Hanging installation

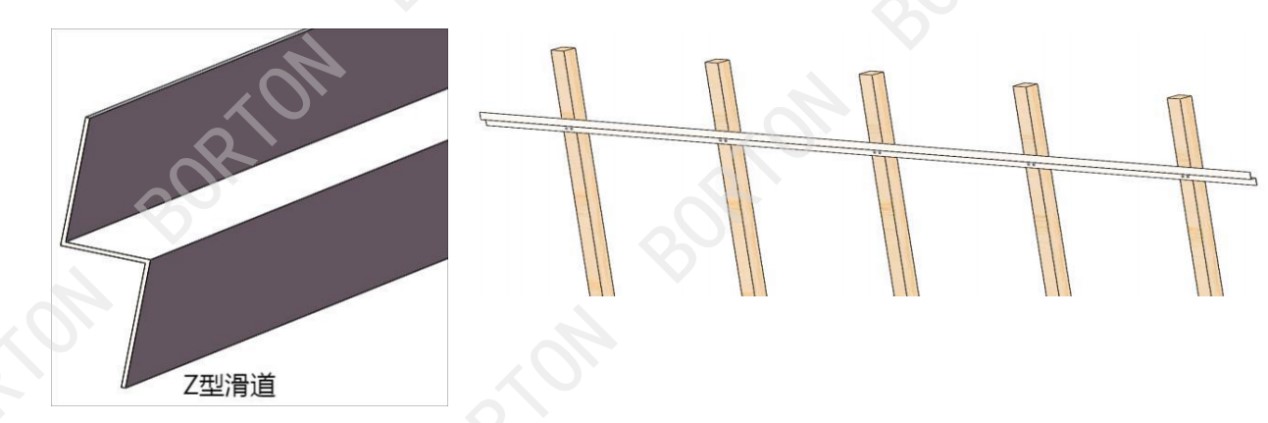

1. First, install Z-shaped slide on the wall or keel for the fixed installation of aluminum foam plate;


10mm Through Hole Stock Foamed Aluminium Sheet

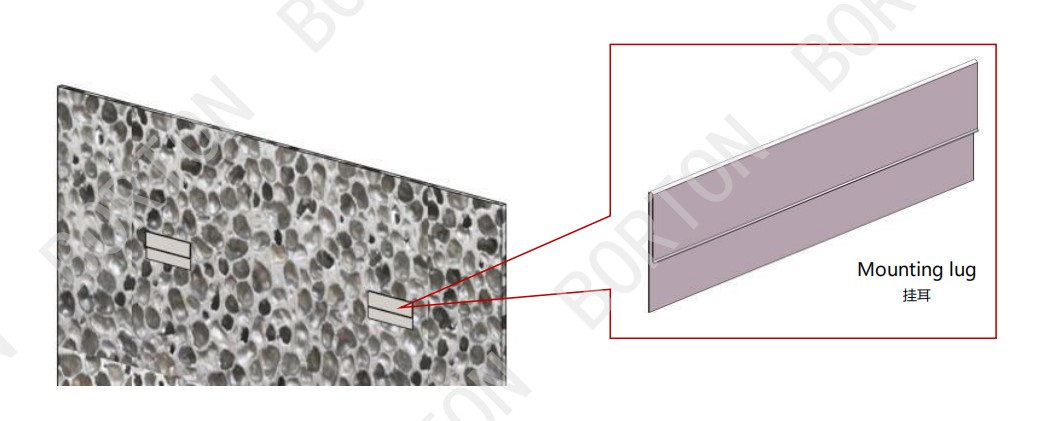

2. Install mounting ears on the back of the aluminum foam plate. The mounting ears are U-shaped, and their wider sides are glued to the aluminum foam plate


10mm Through Hole Stock Foamed Aluminium Sheet


3. After the rubber layer dries and solidifies, hang the aluminum foam sheet onto the guide rails.


10mm Through Hole Stock Foamed Aluminium Sheet

10mm Through Hole Stock Foamed Aluminium Sheet

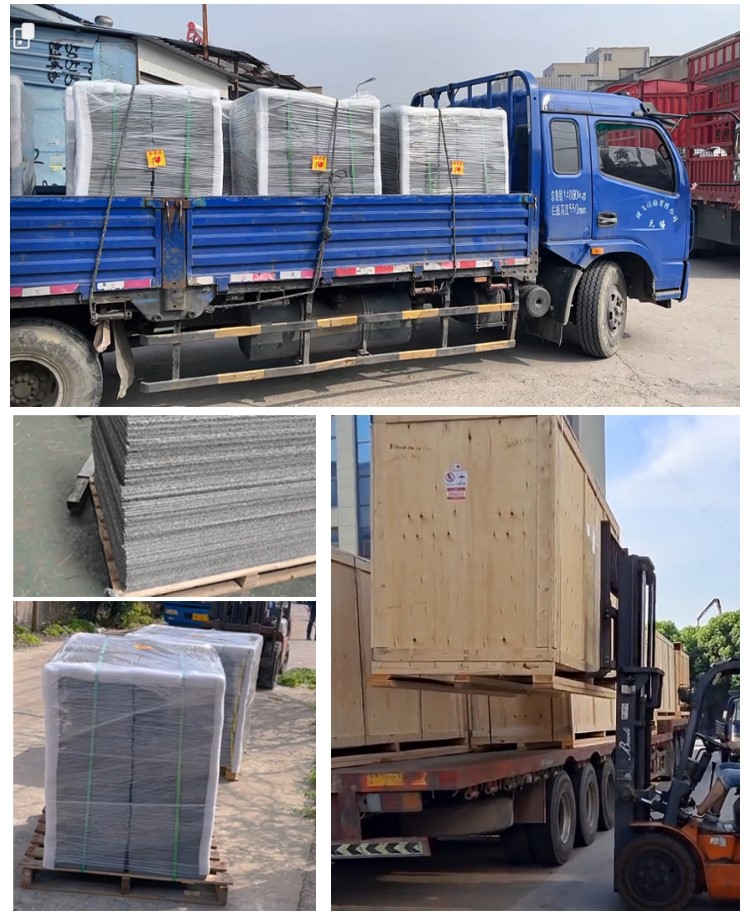

Pakage

Wooden box
