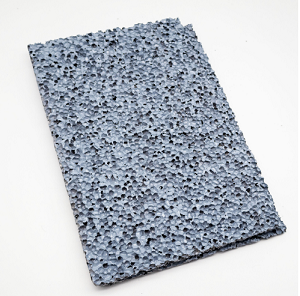

Al Metal Foam Closed Cell Aluminum Foam Material
Aluminium foam sheet, a versatile material, is gaining traction across various industries due to its unique combination of strength, lightness, and thermal properties. This innovative product category encompasses a range of applications, from sound insulation to structural components.
Introduction

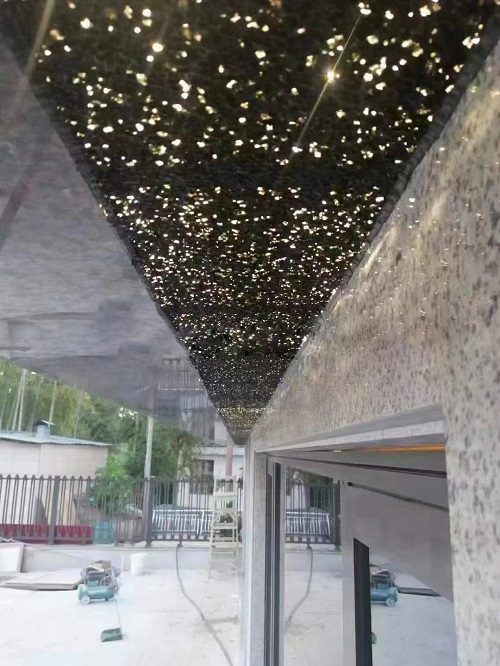

Aluminum foam has many special properties. It can be widely used in aerospace, aviation, high-speed trains, urban rail trains, shipbuilding, high-speed railways, construction, tunnels and noise barriers along the way.
It has light weight, high sound absorption, high shock absorption, high absorption energy, high electromagnetic shielding performance, excellent heat insulation, high temperature resistance, and non combustible combustion characteristics. It has unique environmental friendliness.
Specifications
Type | Available in Closed-cell, Open-cell and Micro-open-cell |
Purity | > 97% |
Form | Sheet or Roll, depending on size & thickness |
Cell Size (PPI) | 10-150PPI, as per request |
Thickness | Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape | can be made in different shape as per request |
Porosity | 70-90% |
Open Cell Rate | 55-65% |
Volume Density | 0.25-0.75g/cm3, as per request |
Surface Density | 200-2500 g/m ^2, as per request |
Noise reduction coefficient NRC | >0.75 |
Fire-proof level | A1 |
Energy absorption | 8J/m3-30J/M3 |
Compressive strength | 3Mpa-17Mpa |
Flexural strength | 3Mpa-15Mpa |
Reference dimensions
2mm*200mm*300mm | 3mm*200mm*300mm | 4mm*200mm*300mm |
5mm*200mm*300mm | 6mm*200mm*300mm | 7mm*200mm*300mm |
8mm*200mm*300mm | 9 to 10mm*200mm*300mm | The size can be customized |
